The water meter chamber / manhole chamber is designed for connection to public or internal water supply networks.

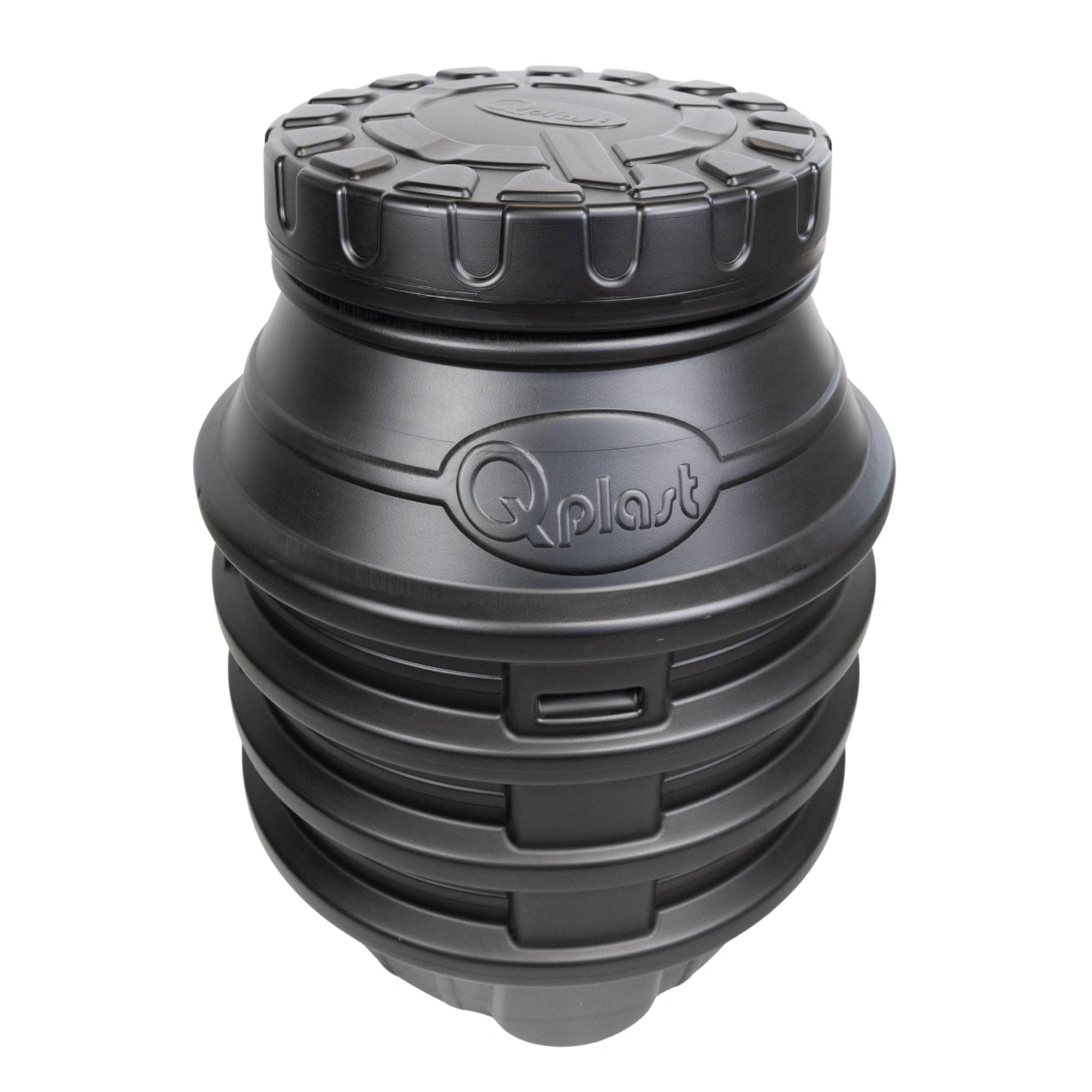

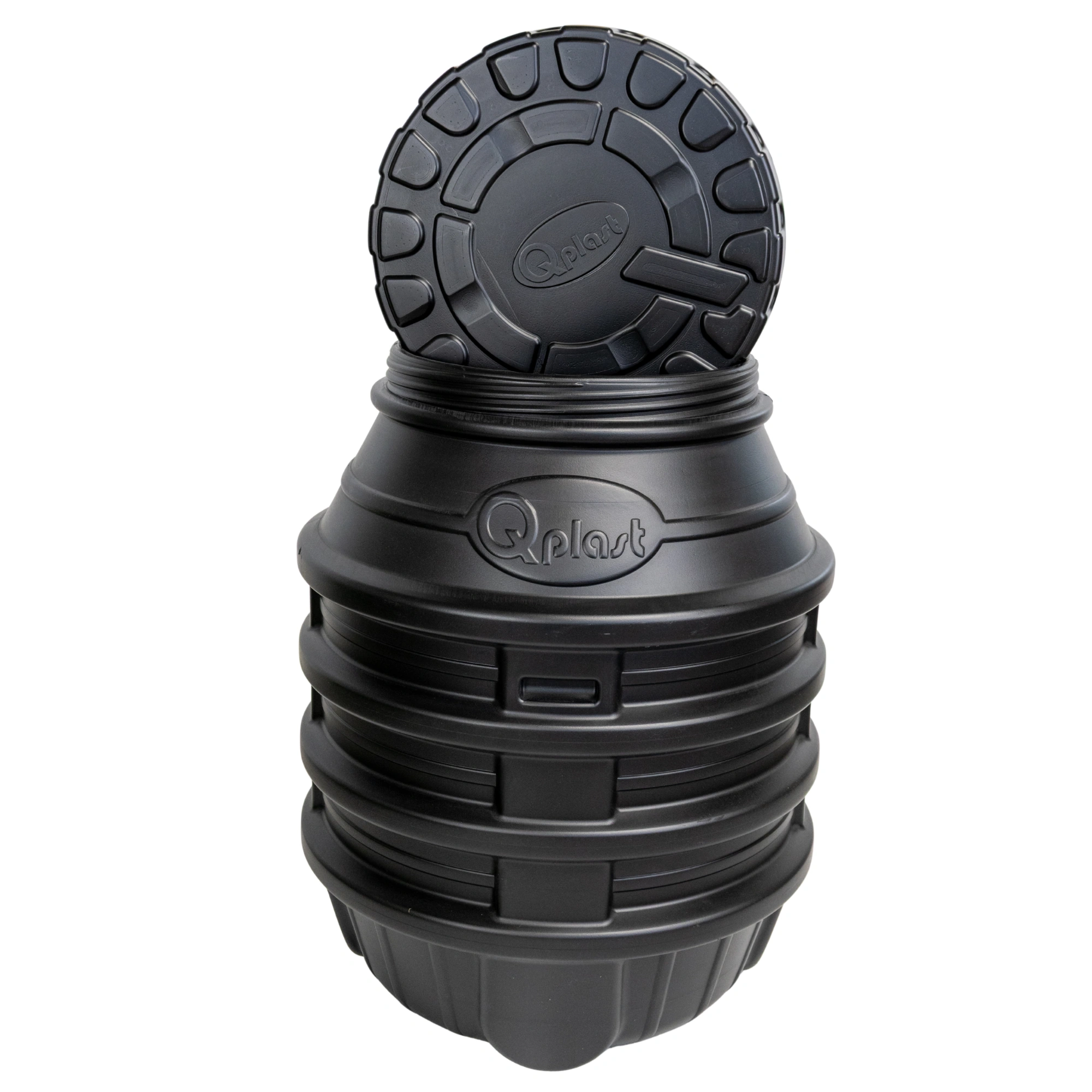

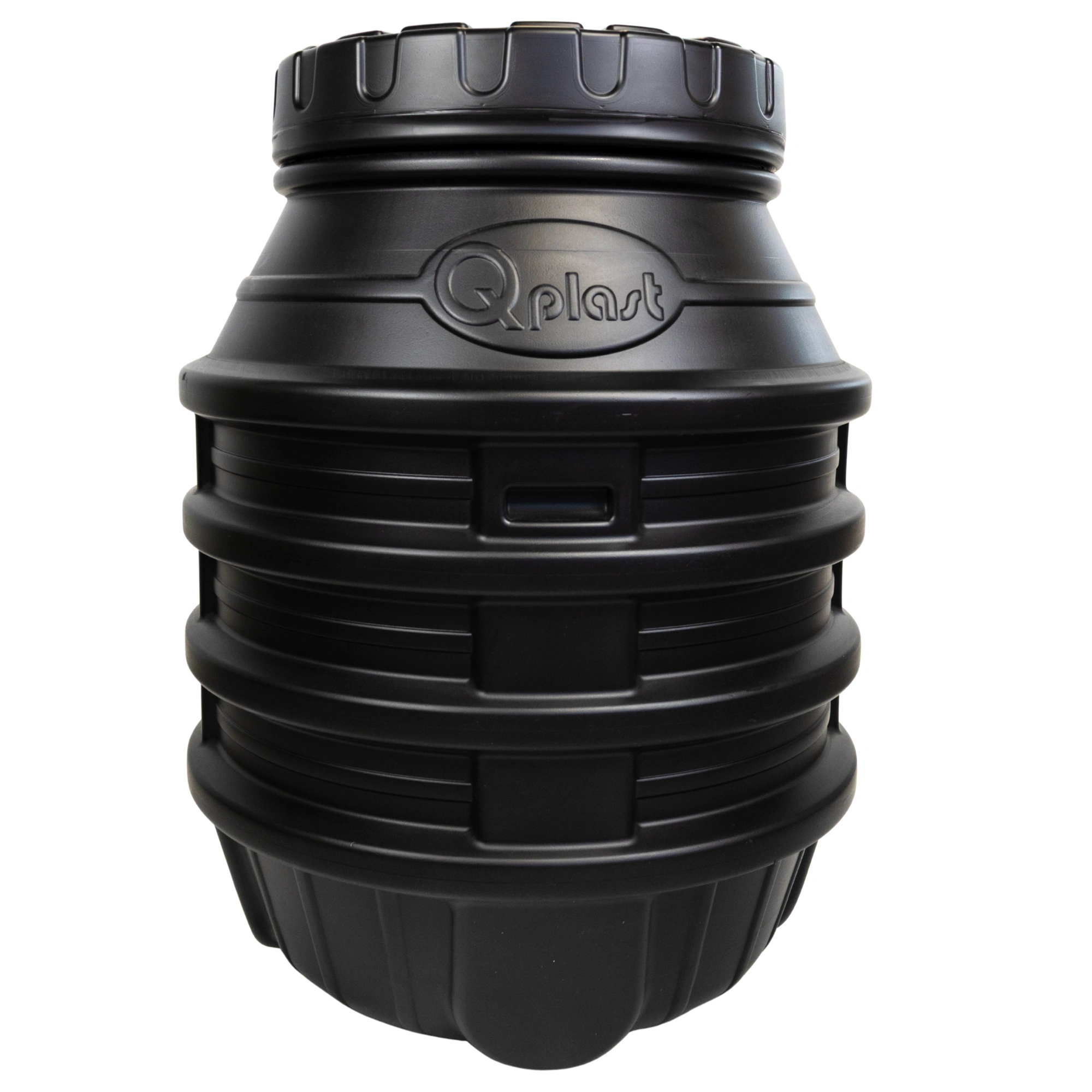

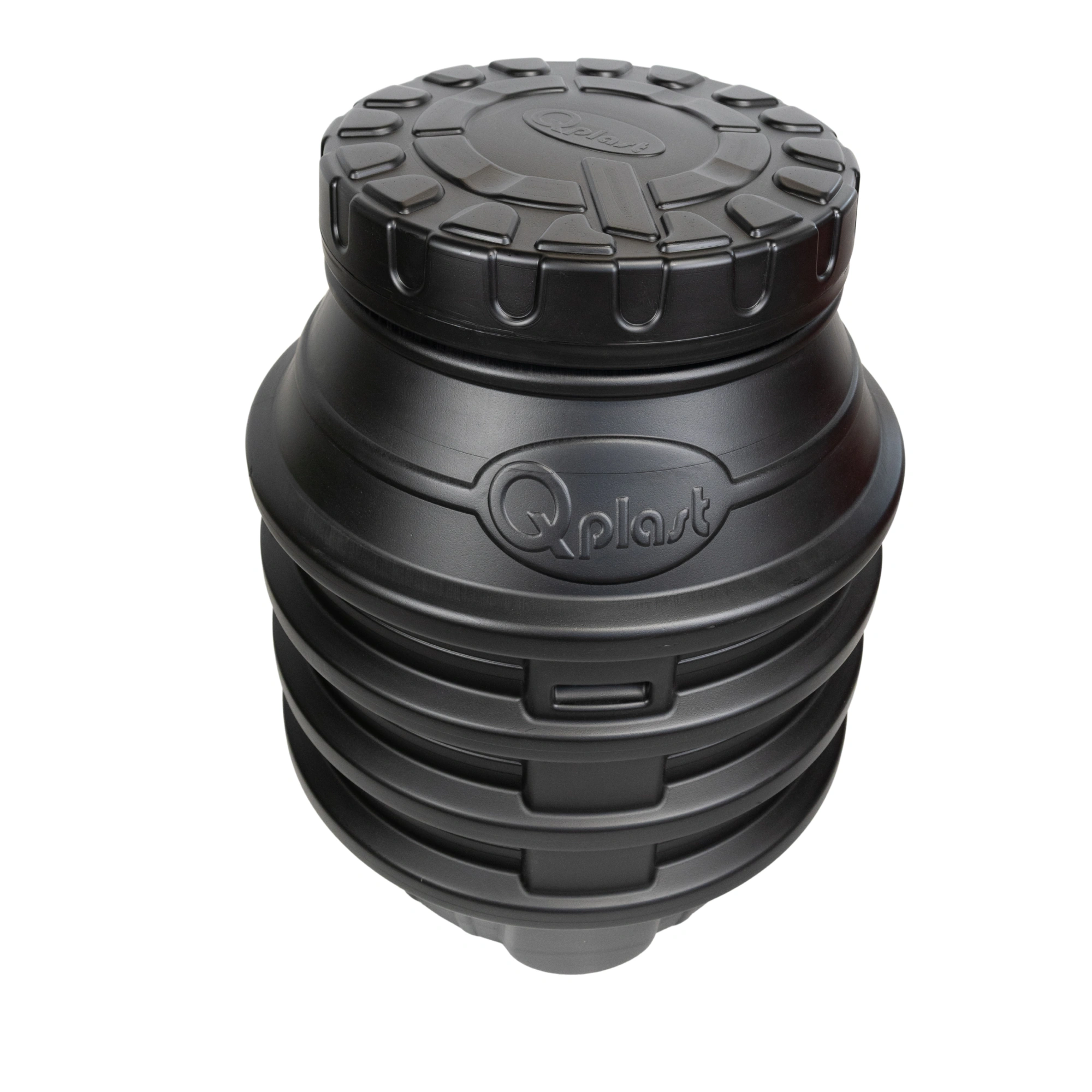

The Qplast water meter chamber has an external diameter of 800 mm and a height of 1050 mm. It is intended for housing the internal components of a water supply system, including the water meter, valves, and other installation elements, depending on user requirements. It ensures protection against external factors such as soil pressure, water infiltration, and temperature variations.

The Qplast water meter chamber is manufactured from high-density polyethylene (HDPE) using advanced technologies. It is a monoblock unit with a triple-layer structure.

It is equipped with:

• a PE cover with airtight threaded closure;
• a thermal insulation layer to protect the components of the water supply installation;
• sealing gaskets for DN 25 - DN 63 mm pipes,

ensuring easy and safe installation.

Advantages of the Qplast water meter chamber:

• easy handling and installation;
• lightweight;
• long service life;
• easy access for meter reading and system inspection;
• possibility of remote meter reading (via radio);
• excellent chemical resistance;
• very good resistance to low temperatures, impact, and shocks;
• high resistance to corrosion and wear.

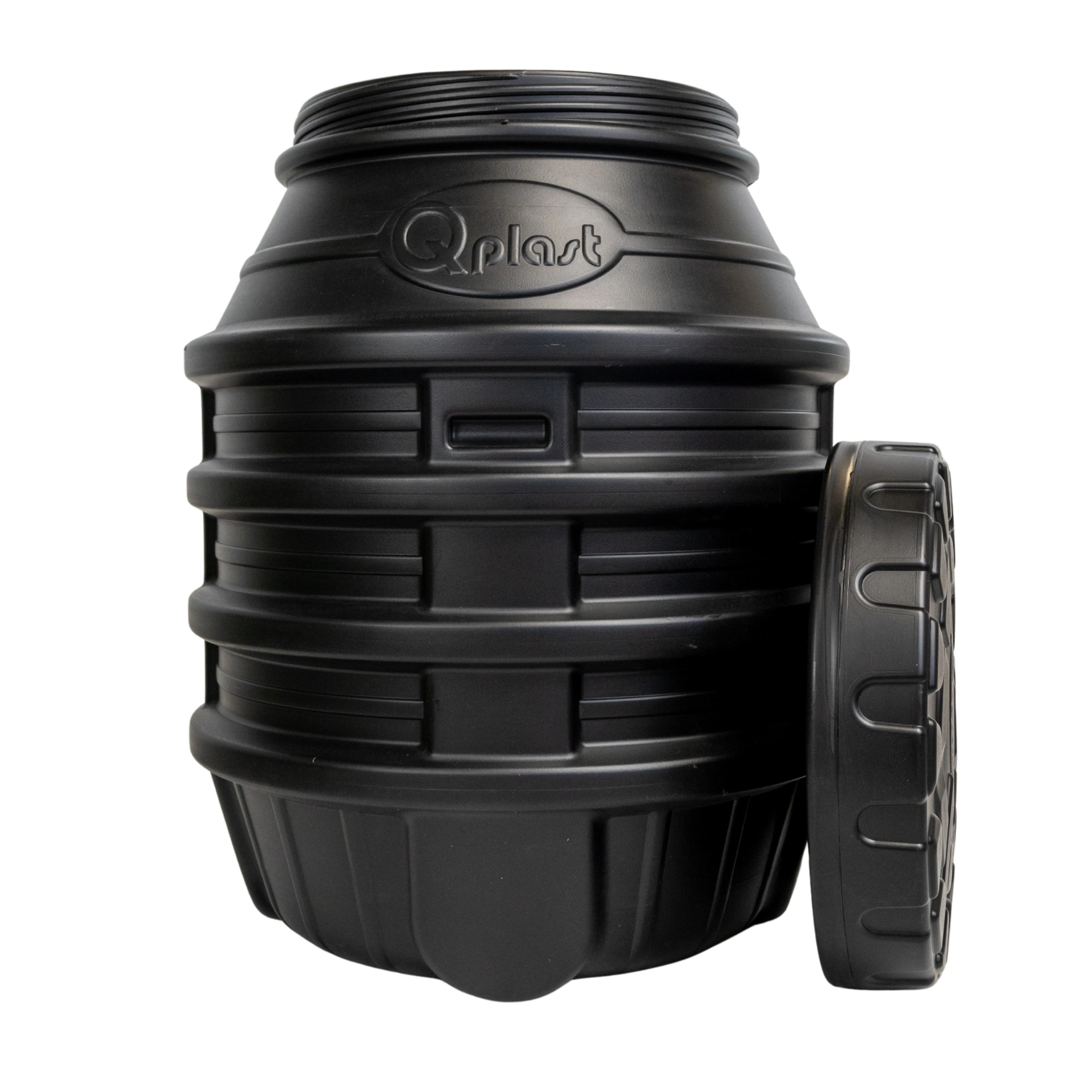

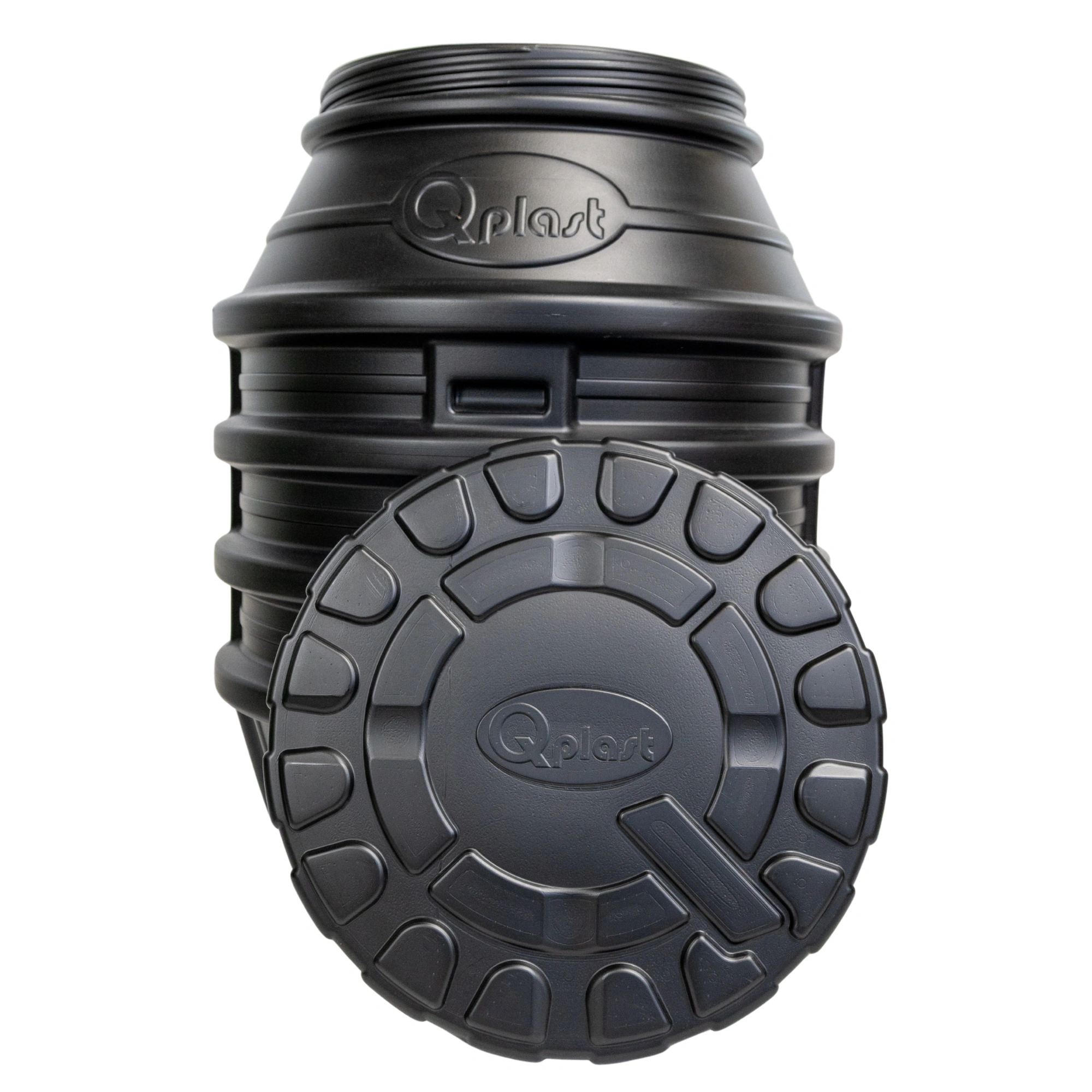

The chamber cover is manufactured using the same process as the chamber and is classified according to EN 124 standards in the A15 category, intended for areas used exclusively by pedestrians.

The upper part of the cover is designed to allow water drainage, preventing water stagnation and the formation of environments conducive to the development of various organisms.
